ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ НАПАИВАЕМЫЕ ДЛЯ СВЕРЛ, ЗЕНКЕРОВ И РАЗВЕРТОК
для спиральных сверл и сверл с прямыми канавками

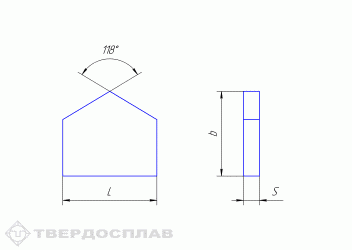

 исполнение 1 |

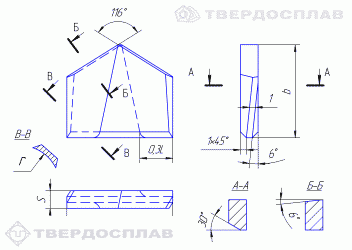

 исполнение 2 |
| Обозначение пластин | Размеры, мм | ||||
|---|---|---|---|---|---|
| Исполнение 1 | Исполнение 2 | L | b | s | r |
| 14011 | 5,5 | 5,6 | 0,9 | ||
| 14131 | 6,0 | 6,0 | 1,0 | ||
| 14031 | 6,0 | 6,0 | 1,4 | ||
| 14051 | 6,5 | 6,0 | 1,4 | ||
| 14071 | 7,0 | 6,3 | 1,4 | ||
| 14091 | 7,5 | 6,3 | 1,6 | ||
| 14111 | 8,0 | 7,1 | 1,6 | ||
| 14151 | 8,5 | 7,1 | 1,6 | ||
| 14251 | 9,0 | 8,0 | 1,7 | ||
| 14171 | 9,0 | 8,0 | 2,0 | ||
| 14271 | 9,5 | 8,0 | 1,7 | ||
| 14191 | 9,5 | 8,0 | 2,0 | ||
| 14211 | 10,0 | 8,5 | 2,0 | ||
| 14291 | 10,0 | 9,0 | 1,7 | ||
| 14312 | 10,8 | 9,0 | 1,7 | 3,5 | |
| 14332 | 11,8 | 10,0 | 2,0 | 3,5 | |
| 14352 | 13,0 | 11,0 | 2,5 | 3,5 | |
| 14372 | 14,0 | 12,0 | 2,5 | 3,5 | |
| 14392 | 15,0 | 13,0 | 2,5 | 3,5 | |
| 14412 | 16,0 | 14,0 | 3,0 | 3,5 | |
| 14432 | 17,0 | 15,0 | 3,0 | 5,0 | |
| 14452 | 18,0 | 16,0 | 3,0 | 5,0 | |
| 14472 | 19,0 | 17,0 | 3,0 | 5,0 | |
| 14492 | 20,0 | 18,0 | 3,5 | 5,0 | |
| 14512 | 21,0 | 18,0 | 3,5 | 5,0 | |
| 14532 | 22,0 | 18,0 | 3,5 | 5,0 | |
| 14552 | 23,0 | 18,0 | 4,0 | 5,0 | |
| 14572 | 24,0 | 18,0 | 4,0 | 5,0 | |
| 14592 | 25,0 | 20,0 | 4,5 | 8,0 | |
| 14612 | 26,0 | 20,0 | 4,5 | 8,0 | |
| 14632 | 27,5 | 20,0 | 4,5 | 8,0 | |
| 14652 | 28,5 | 20,0 | 4,5 | 8,0 | |
| 14672 | 29,5 | 22,0 | 5,0 | 8,0 | |
| 14692 | 30,5 | 22,0 | 5,0 | 8,0 | |
| 14712 | 31,5 | 22,0 | 5,0 | 8,0 | |
| 14732 | 33,5 | 24,0 | 5,0 | 8,0 | |
| 14752 | 36,5 | 24,0 | 5,0 | 8,0 | |
| 14772 | 39,5 | 24,0 | 5,0 | 8,0 | |
| 14792 | 42,0 | 26,0 | 6,0 | 10,0 | |
| 14812 | 44,0 | 26,0 | 6,0 | 10,0 | |
| 14832 | 47,0 | 26,0 | 6,0 | 10,0 | |
| 14852 | 50,0 | 28,0 | 6,0 | 10,0 | |
| 14872 | 52,0 | 28,0 | 6,0 | 10,0 |
