ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ НАПАИВАЕМЫЕ ДЛЯ РЕЗЦОВ
для подрезных, расточных и револьверных резцов.

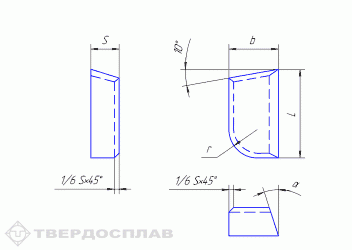

 левая |

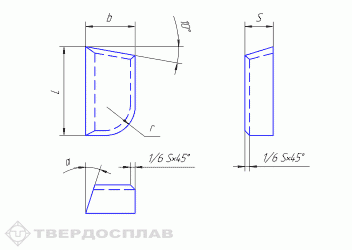

 правая |
| Правых | Левых | L | b | s | r | α, град |
|---|---|---|---|---|---|---|
| 07350 | 6 | 4 | 2,0 | 2,5 | ||
| 07030 | 07040 | 8 | 5 | 2,0 | 3,0 | |
| 07010 | 10 | 6 | 2,5 | 4,0 | ||
| 07050 | 07060 | 10 | 6 | 4,0 | 4,0 | 18 |
| 07370 | 12 | 8 | 3,0 | 5,0 | ||
| 07070 | 07080 | 12 | 8 | 5,0 | 5,0 | 18 |
| 07090 | 07100 | 16 | 10 | 4,0 | 6,0 | 18 |
| 67390 | 67400 | 16 | 10 | 5,0 | 6,0 | 8 |
| 07110 | 07120 | 16 | 10 | 6,0 | 6,0 | 18 |
| 07130 | 07140 | 20 | 12 | 5,0 | 7,0 | 18 |
| 67410 | 67420 | 20 | 12 | 6,0 | 7,0 | 8 |
| 07150 | 07160 | 20 | 12 | 7,0 | 7,0 | 18 |
| 07170 | 07180 | 25 | 14 | 6,0 | 8,0 | 18 |
| 67330 | 67340 | 25 | 14 | 8,0 | 8,0 | 8 |
| 07330 | 07340 | 25 | 14 | 8,0 | 8,0 | 18 |
