ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ НАПАИВАЕМЫЕ ДЛЯ РЕЗЦОВ
для подрезных и расточных резцов при расточке глухих отверстий.

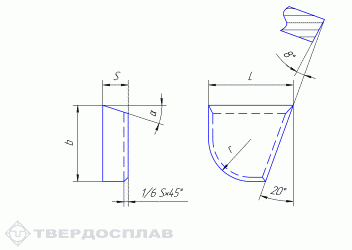

 левая |

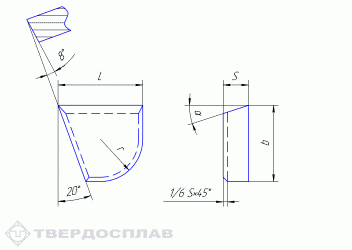

 правая |
| Правых | Левых | L | b | s | r | α, град |
|---|---|---|---|---|---|---|
| 06010 | 8 | 7 | 2,5 | 4,0 | ||
| 06330 | 06340 | 10 | 6 | 4,0 | 4,0 | 18 |
| 06030 | 10 | 8 | 3,0 | 5,0 | ||
| 06350 | 06360 | 12 | 8 | 5,0 | 5,0 | 18 |
| 06050 | 06060 | 12 | 10 | 4,0 | 6,0 | 18 |
| 66050 | 66060 | 12 | 10 | 4,0 | 6,0 | 8 |
| 06370 | 06380 | 16 | 10 | 6,0 | 6,0 | 18 |
| 06090 | 06100 | 16 | 14 | 5,0 | 8,0 | 18 |
| 66090 | 66100 | 16 | 14 | 5,0 | 8,0 | 8 |
| 06390 | 06400 | 20 | 12 | 7,0 | 7,0 | 18 |
| 06130 | 06140 | 20 | 18 | 6,0 | 10,0 | 18 |
| 66130 | 66140 | 20 | 18 | 6,0 | 10,0 | 8 |
| 06410 | 06420 | 25 | 14 | 8,0 | 8,0 | 18 |
| 06170 | 06180 | 25 | 20 | 7,0 | 12,5 | 18 |
| 66170 | 66180 | 25 | 20 | 7,0 | 12,5 | 8 |
| 06270 | 06280 | 32 | 20 | 9,0 | 12,5 | 18 |
| 66270 | 66280 | 32 | 20 | 9,0 | 12,5 | 8 |
| 06290 | 06300 | 40 | 22 | 10,0 | 12,5 | 18 |
| 66290 | 66300 | 40 | 22 | 10,0 | 12,5 | 8 |
