ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ НАПАИВАЕМЫЕ ДЛЯ РЕЗЦОВ
для проходных, расточных и револьверных резцов.
 исполнение 1 |

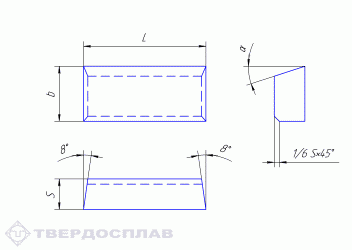

 исполнение 2 |
| Исполнение 1 | Исполнение 2 | L | b | s | α, град |
|---|---|---|---|---|---|
| 01291 | 5 | 3 | 2,0 | ||
| 01311 | 6 | 4 | 2,5 | ||
| 01331 | 8 | 5 | 3,0 | ||
| 02611 | 10 | 6 | 2,5 | ||
| 01351 | 01352 | 10 | 6 | 4,0 | 18 |
| 61351 | 61352 | 10 | 6 | 4,0 | 8 |
| 02631 | 12 | 8 | 3,0 | ||
| 01371 | 01372 | 12 | 8 | 5,0 | 18 |
| 61371 | 61372 | 12 | 8 | 5,0 | 8 |
| 02051 | 02052 | 12 | 10 | 4,0 | 18 |
| 02691 | 02692 | 14 | 10 | 4,0 | 18 |
| 02231 | 02232 | 14 | 12 | 4,0 | 18 |
| 02251 | 02252 | 14 | 12 | 6,0 | 18 |
| 62251 | 62252 | 14 | 12 | 6,0 | 8 |
| 02651 | 16 | 10 | 4,0 | 18 | |
| 01391 | 01392 | 16 | 10 | 6,0 | 18 |
| 61391 | 61392 | 16 | 10 | 6,0 | 8 |
| 02271 | 02272 | 18 | 16 | 6,0 | 18 |
| 62271 | 62272 | 18 | 16 | 6,0 | 8 |
| 02291 | 02292 | 18 | 16 | 8,0 | 18 |
| 02671 | 20 | 12 | 5,0 | 18 | |
| 01151 | 01152 | 20 | 12 | 7,0 | 18 |
| 61151 | 61152 | 20 | 12 | 7,0 | 8 |
| 02411 | 02412 | 20 | 16 | 6,0 | 18 |
| 02311 | 02312 | 22 | 18 | 7,0 | 18 |
| 62311 | 62312 | 22 | 18 | 7,0 | 8 |
| 01411 | 01412 | 25 | 14 | 8,0 | 18 |
| 61411 | 61412 | 25 | 14 | 8,0 | 8 |
| 02431 | 02432 | 25 | 18 | 7,0 | 18 |
| 02351 | 02352 | 25 | 20 | 10,0 | 18 |
| 62351 | 62352 | 25 | 20 | 10,0 | 8 |
| 02451 | 02452 | 32 | 16 | 8,0 | 18 |
| 62451 | 62452 | 32 | 16 | 8,0 | 8 |
| 01431 | 01432 | 32 | 18 | 10,0 | 18 |
| 61431 | 61432 | 32 | 18 | 10,0 | 8 |
| 02511 | 02512 | 36 | 20 | 10,0 | 18 |
| 62511 | 62512 | 36 | 20 | 10,0 | 8 |
| 01451 | 01452 | 40 | 22 | 12,0 | 18 |
| 01491 | 01492 | 40 | 18 | 10,0 | 18 |
| 61491 | 61492 | 40 | 18 | 10,0 | 8 |
| 61451 | 61452 | 40 | 22 | 12,0 | 8 |
| 01251 | 01252 | 50 | 20 | 12,0 | 18 |
| 61251 | 61252 | 50 | 20 | 12,0 | 8 |
| 01471 | 01472 | 50 | 25 | 14,0 | 8 |
| 61471 | 61472 | 50 | 25 | 14,0 | 8 |
| 01271 | 01272 | 60 | 22 | 12,0 | 18 |
| 61271 | 61272 | 60 | 22 | 12,0 | 8 |
